Infrastructure quantity takeoff: earthworks, concrete and a traceable BOQ
Infrastructure quantity takeoff translates alignments, sections, details and specifications into measurable work items. Each quantity needs a defined scope, unit and source so that tendering, pricing, procurement and payment review can use a consistent basis.
What is needed before measuring?
Collect current drawings, topographic surveys where relevant, longitudinal and cross-sections, construction details, specifications and the item structure. Separate existing conditions, demolition and proposed work. Identify assumptions and missing information rather than presenting them as measurements.
Site inspection or survey can clarify access, existing utilities and construction constraints. A photograph alone does not establish road width, pipe depth or soil conditions. Record the source, date and responsibility for every supplement.
Earthworks quantities
Define the measurement boundary before comparing existing and proposed surfaces or sections. Review breaklines, excavation limits and areas without adequate survey coverage. A net volume difference does not replace separate cut and fill quantities.
In-situ, loose haulage and compacted volumes differ. Bulking and compaction factors depend on material and project evidence; one factor is not suitable for every soil. Review disposal, transport and treatment against the contract items.
Concrete quantity calculation
For a simple rectangular slab, 10 m × 5 m × 0.20 m gives 10 m³ before openings and measurement adjustments. This is a geometric example, not a design instruction, order quantity or structural safety check.
For bridges, retaining walls, foundations and varying sections, break down the geometry and check intersections and overlaps. Concrete, reinforcement, formwork and related work are separate items where the specification requires them. Concrete volume alone does not establish steel quantity or formwork area.
Keep measured, payable and ordering quantities separate. An agreed ordering allowance does not automatically become a contractual quantity.
Roads, utilities and electrical BOQs
Road quantities distinguish layers, thicknesses, areas, kerbs, drainage and markings. Utility items identify material, diameter, length, applicable depth, chambers, end connections, bedding and reinstatement. Check what is already included in each rate.
An electrical BOQ follows the designer’s drawings and specification: routes, ducts, cables, panels, earthing, equipment and accessories. Straight-line distance alone does not establish cable length. Quantity takeoff does not replace electrical design by the responsible qualified designer.
What belongs in a quantity calculation table?
| Field | Purpose |
|---|---|
| Item number and description | Identify the work and its boundaries |
| Unit and quantity | Area, volume, length, count or the specified contract unit |
| Location and stage | Building, floor, zone, section or chainage |
| Source and revision | Drawing, model, section or site measurement |
| Formula and rule | Allow the result to be checked and reproduced |
| Status and notes | Measured, assumed, missing, changed or awaiting approval |
The BOQ organizes items; supporting calculation sheets explain how quantities were obtained. An estimate adds prices and assumptions. A purchase order adds supply requirements. These documents are connected but not interchangeable.
Who does what?
| Role | Typical contribution | What to agree |
|---|---|---|
| Quantity surveyor | Measurement, item structure, quantity review and updates; sometimes estimates and payment review | Scope, detail and measurement rules |
| Designer | Design, details and specifications | Approved revisions and clarifications |
| Contractor and site team | Pricing, procurement, work planning and progress reporting | Rate scope, waste, logistics and change records |
| Supervisor or project manager | Review of execution and payment within the agreed authority | Measurement evidence, approvals and responsibilities |
Responsibilities depend on the appointment. A quantity surveyor is not necessarily limited to early estimates or general detail; no individual role guarantees that overruns cannot occur.
Estimates, budgets and payment applications
An estimate combines quantities, rates, scope and dated assumptions. Compare bids on equivalent scope and identify gaps, alternatives and temporary works. A price list is a reference, not proof of a market rate or a binding project offer.
For a payment application, link the claimed quantity to its location and evidence, account for previously approved work, and distinguish contract work from changes. Retain the previous revision and explain each adjustment. Programme, resources and cash flow require additional planning beyond the quantity table.
Cost estimates · Interim payments · Variations · Construction schedules
Software, BIM and GIS

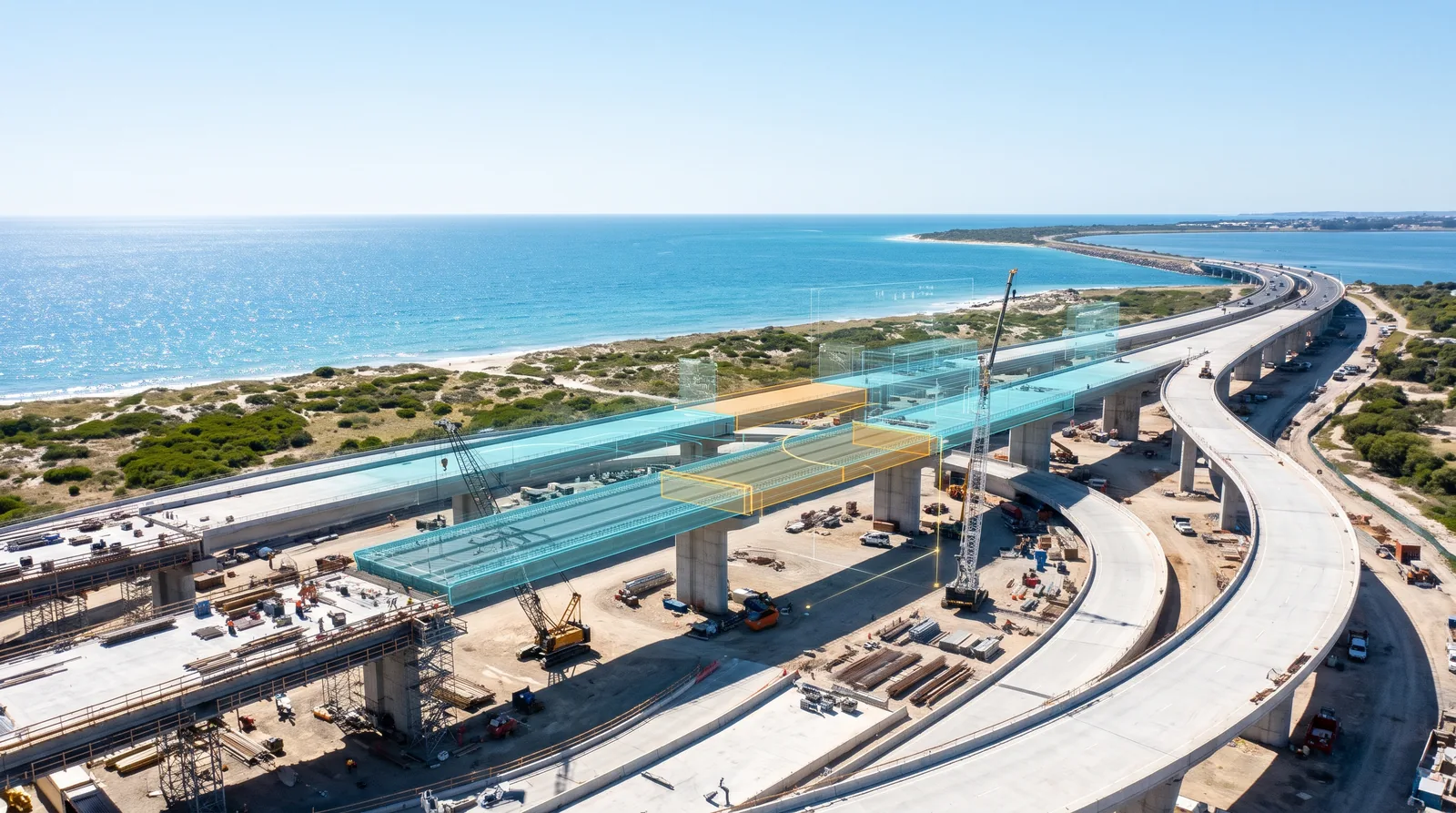

Software helps measure and organize information; models can link quantities to objects and locations. GIS can provide spatial context for infrastructure. Check coordinate systems, units, detail and revisions before combining sources. Treat integrations as available only after they have been verified.
Yaakov Avital is a building technician and quantity surveyor. His professional service is separate from AiN software. Service scope is agreed against project inputs and the required deliverable; software capabilities are reviewed for the relevant workflow.
Frequently asked questions
Can takeoff begin with partial design?
Yes, with the design stage, assumptions and gaps clearly identified. It is not presented as a final construction quantity.
Does a concrete quantity calculation prove code compliance?
No. Quantity measurement is not structural design verification or a compliance certificate.
Does every change update automatically?
No. Review source revisions, links, affected items and manual supplements.
Which measurement rules apply?
Use the project’s agreed documents, edition, item and particular specification. A generic rule does not replace the contract.
How is double counting controlled?
Define boundaries, identify linked models and check interfaces between items and sections. Verify samples against the source.
What should I send for a service proposal?
Available drawings or models, specifications, scope, deadline and the required deliverable, with missing information clearly listed.
